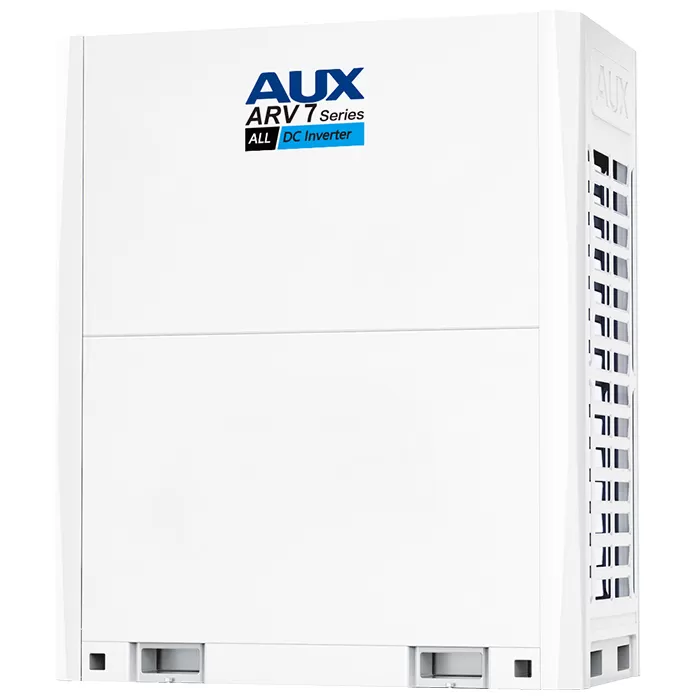

ARV 7 Series 14-22HP

High EER And COP.


180° Sine Wave Control.


High efficiency DC fan motor

Share:

FEATURES

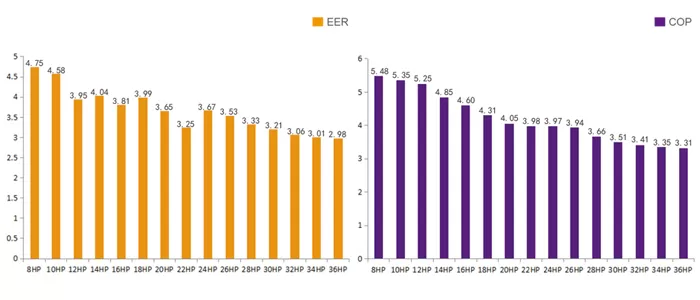

High EER And COP

ARV 7 Series achieves the industry’s top class energy efficiency in cooling and heating by utilizing all DC inverter compressors, and Enhanced vapor injection.

The cooling EER is up to 4.75 and the heating COP is up to 5.48 in the 8HP category.


* Data from certification report: ERP, certification number: AHEE211200054953(Asia Pacific + Africa + Eastern Europe + Western Europe)

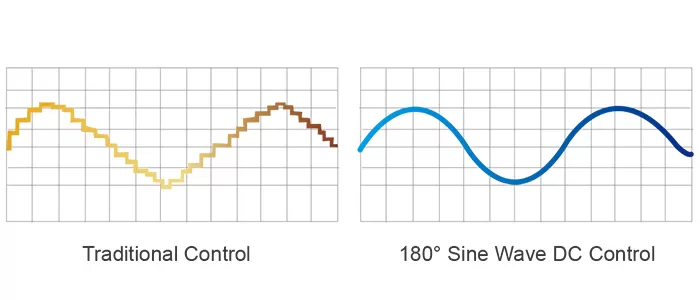

180° Sine Wave Control

DC inverter compressor users 180° sine wave vector control technique makes motor operate smooth and increases the efficiency.

significantly compared with traditional sawtooth wave. It also can lower the noise level.

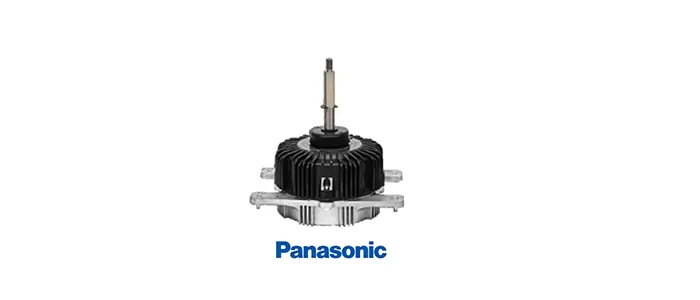

High efficiency DC fan motor

The DC brushless motor adjusts the fan speed according to the system pressure and operating load, resulting in a significant increase in efficiency, and the Super Aero fan provides greater air volume and higher static pressure.

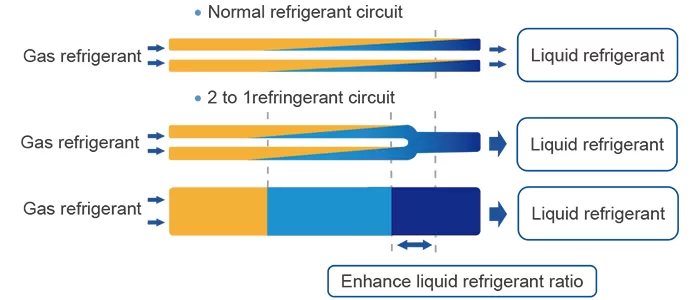

High Efficient Heat Exchanger

Optimized 2 to 1 refrigerant circuit design,increase the heat exchanging efficiency and enhance the ratio of liquid which flow to the evaporator.

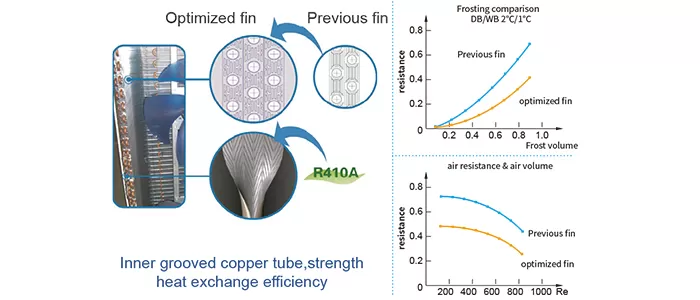

Optimized Fin Design

Optimized fin design, reduces the water resistance and the wind resistance.

* The data from the AUX air conditioning laboratory center, the parameters in the table is the nominal value of the rated working conditions, it will be vary with the difference of working conditions, environment, regional differences, the specific experimental environment are measured by AUX, including cooling capacity, heating, power, noise, air supply, etc.

* Due to product iteration and upgrading, the above design and specifications are subject to change without notice, and the final specifications are subject to the technical specifications which provided by the sales representative.


HP1416182022
