8-144HP Large Capacity.
Wide Operation Range.
Double U Type Heat Exchanger
FEATURES
Large Capacity&Free Combination
15 basic models from 8HP to 36HP.
Maximum combination: 144HP, top level in industry.
Less quantity of system, space saving, easy installation and low cost.
Wide Operation Range
No matter in hot summer or cold winter, ARV 7 can supply comfortable environment for users.
Long Piping Length
Thanks to the DC inverter control technology and sub-cooling circuit technology, it is possible to design a system with longer piping and elevation difference which make it easier to design and installation.
Max. Total piping length — 1000m
Max.piping length between ODU and farthest IDU — 200m
Max. piping length from 1st indoor branch to the farthest indoor unit — 40m/90m*
Max. Level difference between indoor units — 30m
Max. Level difference between ODU and IDU units — 110m/130m
*The longest length after first branch is 40m as standard can be extended to up to 90m under certain conditions.Please contact your local dealer for further information.

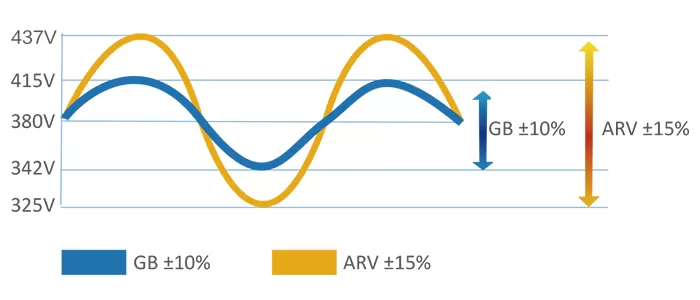

Wide Voltage Design
In Country with unstable voltage, ARV system still could run stably.

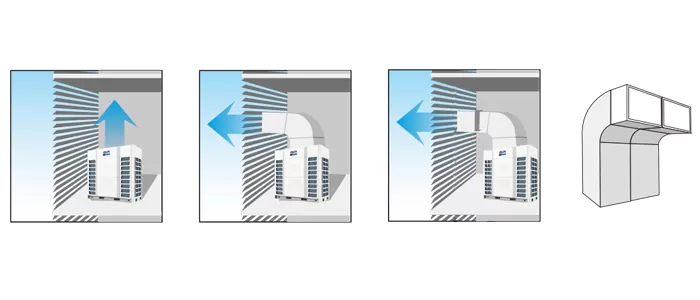

Optimized fan provide outdoor unit up to 80Pa(8-22HP),125Pa(24-36HP)static pressure.
Outdoor units can be installed in the service floor or facility room.
* The data from the AUX air conditioning laboratory center, the parameters in the table is the nominal value of the rated working conditions, it will be vary with the difference of working conditions, environment, regional differences, the specific experimental environment are measured by AUX, including cooling capacity, heating, power, noise, air supply, etc.
* Due to product iteration and upgrading, the above design and specifications are subject to change without notice, and the final specifications are subject to the technical specifications which provided by the sales representative.
LINE-UP
HP | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 22 | 24 | 26 | 28 | 30 | 32 | 34 |
36 | 38 | 40 | 42 | 44 | 46 | 48 | 50 | 52 | 54 | 56 | 58 | 60 | 62 | |
64 | 66 | 68 | 70 | 72 | 74 | 76 | 78 | 80 | 82 | 84 | 86 | 88 | 90 | |
92 | 94 | 96 | 98 | 100 | 102 | 104 | 106 | 108 | 110 | 112 | 114 | 116 | 118 | |
120 | 122 | 124 | 126 | 128 | 130 | 132 | 134 | 136 | 138 | 140 | 142 | 144 |
